Quick Definition: Flexography is a modern printing method that uses flexible rubber or plastic plates with raised images to transfer fast-drying ink onto many surfaces. It’s commonly used for packaging, labels, and boxes, offering high-speed production while maintaining good print quality.
Flexography printing stands as one of the most versatile and widely used commercial printing methods in today’s manufacturing landscape. This relief printing process utilizes flexible printing plates made from rubber or photopolymer materials to transfer ink onto various substrates.
Flexography delivers exceptional print quality while maintaining high-speed production capabilities, making it ideal for packaging, labels, newspapers, and various consumer products.
We often see flexography’s results in our daily lives without realizing it—from food packaging and shopping bags to product labels and corrugated boxes. The process excels when printing on non-porous substrates like plastic films and metallic surfaces, where other printing methods might struggle to achieve consistent results.
At its core, flexography offers businesses an efficient balance between quality, speed, and cost-effectiveness. The ability to use quick-drying inks and handle a wide range of materials has positioned flexo printing as a cornerstone technology in the packaging industry. Continuous innovations have also helped improve its capabilities year after year.
History of Flexography
Flexography, often called “flexo,” originated in the late 19th century as a simple printing method initially known as aniline printing due to its use of aniline dyes. The first flexographic press was patented in 1890 in Liverpool, England.
In the early 20th century, the process gained popularity for printing on packaging materials like food wrappers and corrugated boxes. However, the term “aniline printing” carried negative connotations because aniline dyes were found to be toxic.
The rebranding to “flexography” occurred in 1952 after a competition by the Mosstype Corporation sought a new name for the improved process. This change coincided with significant advancements in plate materials and ink formulations.
The 1970s brought dramatic improvements with the introduction of photopolymer plates replacing rubber plates. These new materials offered better quality and consistency, expanding flexography’s applications beyond simple packaging.
During the 1980s and 1990s, we saw computerization transform flexography with digital plate-making systems. These technological advancements allowed for greater precision and reduced setup times.
Key Milestones in Flexography:
- 1890: First flexographic press patented
- 1952: Renamed from “aniline printing” to “flexography”
- 1970s: Introduction of photopolymer plates
- 1980s: Development of digital pre-press systems
- 1990s-2000s: Integration of computer-to-plate technology
Today, flexography has evolved into a sophisticated printing process used widely in packaging, labels, and various flexible materials. Modern flexo presses can achieve print quality comparable to offset and gravure while maintaining cost-effectiveness for shorter runs.
Principles of Flexography
Flexography stands as a versatile printing method widely used in packaging and label production. The process relies on three fundamental components that work together to create high-quality prints on various substrates.
Rotary Printing Process
Flexography employs a rotary printing system where all printing components rotate during operation. The process begins with an image carrier (the flexographic plate) mounted on a cylinder. As this cylinder rotates, it transfers ink to the substrate moving through the press.
Unlike flatbed systems, this continuous rotary motion allows for much higher production speeds. Modern flexo presses can achieve printing speeds of 500-2000 feet per minute depending on the application and materials.
The rotary nature also enables the implementation of in-line configurations where multiple printing units, die-cutting stations, and finishing processes can operate sequentially in a single pass.
Flexible Relief Plates
The cornerstone of flexography is its distinctive flexible relief plates. These plates feature raised image areas that transfer ink to the substrate while non-image areas remain recessed.
Traditionally made from rubber, modern flexo plates are typically photopolymer-based. When exposed to UV light, specific areas of these polymers harden according to the design pattern, creating precise relief images.
Plate durability varies significantly based on material composition. Natural rubber plates may last for 1-2 million impressions, while synthetic photopolymers can endure up to 6 million impressions under optimal conditions.
The flexibility of these plates allows them to conform to irregular substrate surfaces, making flexography ideal for printing on corrugated materials, films, and other non-uniform surfaces.
Fast-Drying Inks
Flexographic printing utilizes specialized fast-drying inks with low viscosity. These fluid-based formulations typically range from 15 to 30 seconds in viscosity cup measurements, allowing them to transfer efficiently from the anilox roll to the plate.
The rapid drying capability is essential for the high-speed nature of flexo printing. Most flexo inks achieve dryness through one of three mechanisms:
- Evaporation: Solvent-based inks that dry as chemicals evaporate
- Absorption: Water-based inks that penetrate porous substrates
- Curing: UV/EB inks that solidify when exposed to energy sources
We’ve seen significant advancement in environmentally friendly water-based and UV-curable flexo inks, reducing VOC emissions while maintaining print quality and durability on various packaging materials.
Flexography Printing Process
Flexography is a modern relief printing method widely used in the packaging industry. This versatile process utilizes flexible photopolymer or rubber plates and fast-drying inks to create high-quality prints on various substrates.
Prepress Procedures
Prepress operations begin with artwork design and preparation in digital formats. We create designs using specialized software that accounts for flexography’s unique requirements, including trap settings and dot gain compensation.
Color separation follows, where the design is split into individual color channels—typically cyan, magenta, yellow, and black (CMYK), plus any spot colors. This stage requires precise calibration to ensure accurate color reproduction.
Proofing is essential before plate production. Digital proofs provide a cost-effective preview, while analog proofs more accurately represent the final print result. Both help identify potential issues before the expensive plate-making process begins.
File preparation includes checking for proper resolution (typically 2400-4000 dpi), confirming correct screen angles, and ensuring all fonts are properly embedded or outlined.
Plate Making
Flexographic plates are made from photopolymer materials that harden when exposed to UV light. The process begins with a negative film positioned over the photopolymer plate.
UV exposure through the negative creates raised areas on the plate that will transfer ink to the substrate. The unexposed areas wash away during development, leaving the relief image.
Plate thickness typically ranges from 0.045″ to 0.250″, depending on the application. Thinner plates offer better detail reproduction, while thicker plates provide durability for longer runs.
Digital platemaking technologies have revolutionized the industry, eliminating film negatives by using laser engraving or direct imaging systems. These systems improve registration accuracy and allow for finer details.
After development, plates undergo post-exposure treatment to increase durability and are then dried before mounting on cylinders or sleeves for press installation.
Ink System Management
Flexographic inks are primarily solvent-based, water-based, or UV-curable formulations. Each type offers specific advantages for different substrates and end-use requirements.
Viscosity control is critical in flexography. We maintain precise ink viscosity through automated systems that monitor and adjust viscosity during press runs, ensuring consistent color density.
Key ink components include:
- Pigments (providing color)
- Vehicles (carrying the pigment)
- Solvents (controlling flow characteristics)
- Additives (modifying properties like drying time or slip)
Color matching follows standardized systems like Pantone to maintain consistency. Spectrophotometers measure and verify color accuracy throughout production.
Proper ink storage and handling procedures prevent contamination and maintain shelf life. Temperature-controlled environments typically extend ink usability.
Printing Press Operation
Modern flexographic presses operate in either stack, central impression (CI), or inline configurations. CI presses offer superior registration for multi-color work on flexible films, while inline presses excel with paper substrates.
Press speeds commonly range from 500 to 2,000 feet per minute, depending on substrate and complexity. Setup involves mounting plates on cylinders, installing anilox rolls, and establishing proper impression settings.
Anilox rolls transfer a measured amount of ink to the plate using precisely engraved cells. Cell count (lines per inch) and volume determine ink transfer quantity, with typical ranges from 200-1,500 cells per inch.
Doctor blades remove excess ink from the anilox roll surface, ensuring only the cells carry ink. Proper blade angle (30-60 degrees) and pressure are essential for clean wiping without causing premature wear.
Web tension control maintains consistent substrate movement through the press, preventing registration issues and substrate deformation.
Types of Flexographic Presses
Flexographic presses come in three main configurations, each designed to meet different production requirements and printing challenges. These press designs influence print quality, efficiency, and the types of substrates that can be effectively processed.
Stack Press
Stack presses arrange printing units vertically in a tower-like configuration. Each color station is positioned directly above the next, creating a compact footprint ideal for facilities with limited floor space.
The substrate travels upward through each printing station sequentially. This vertical arrangement allows for excellent registration control but can present challenges with substrate tension management.
Stack presses excel at printing on thicker, more rigid materials. They’re commonly used for printing paperboard packaging, corrugated materials, and folding cartons.
Maintenance accessibility is a key consideration with stack presses. Operators must climb ladders or use elevated platforms to reach upper printing units, which can increase downtime during color changes or adjustments.
Central Impression Press
Central impression (CI) presses feature a large central cylinder around which multiple printing stations are arranged. All printing units apply their respective colors against this single central drum.
Key advantages include:
- Superior registration accuracy
- Excellent for thin, stretchy films
- Ideal for process color printing
- Reduced web path and tension issues
CI presses maintain consistent substrate support throughout the printing process, making them perfect for flexible packaging applications. The web contacts only one cylinder during printing, minimizing distortion on extensible materials like plastic films.
These presses typically run at higher speeds than other configurations. Modern CI presses often incorporate sophisticated drying systems between color stations to prevent wet-trapping issues.
In-line Press
In-line presses arrange printing units horizontally in sequence. The substrate travels in a straight path from one end to the other, passing through each color station consecutively.
This configuration offers tremendous flexibility. We can add or remove printing units, die-cutting stations, laminating units, and other converting processes in a modular fashion. In-line presses are workhorses in label printing where multiple finishing operations are often required.
Web path length between printing units is significant in in-line designs. This can create registration challenges, especially with heat-sensitive substrates that may expand or contract between stations.
Modern in-line presses incorporate advanced tension control systems and registration technologies to overcome these inherent challenges.
Substrates and Inks
Flexographic printing relies on the perfect marriage between the substrate material and specialized inks. The interaction between these two components directly impacts print quality, durability, and production efficiency.
Materials Used as Substrates
Flexography accommodates an impressive range of substrates, making it one of the most versatile printing processes available.
Paper-based substrates include kraft paper, corrugated board, and coated papers commonly used in packaging and publishing.
Plastic films such as polyethylene, polypropylene, and polyester offer excellent durability and moisture resistance, making them ideal for food packaging and labels.
Metallic substrates like aluminum foil and metallized films provide barrier properties and distinctive aesthetic appeal for premium packaging applications.
Non-woven fabrics and laminates also work well with flexographic printing, expanding its use into textiles and specialized packaging.
Substrate thickness can range from thin films (12 microns) to corrugated board (several millimeters), demonstrating the process’s adaptability across different material dimensions.
Properties of Flexographic Inks
Flexographic inks possess unique characteristics that distinguish them from other printing methods.
Fast-drying formulations are essential for high-speed production lines. They typically dry through evaporation or UV-curing mechanisms.
Low viscosity is a defining feature, allowing inks to transfer efficiently from the anilox roll to the plate and then to the substrate without excessive spreading.
Water-based inks have gained popularity due to their environmental benefits and reduced VOC emissions. They work exceptionally well on paper and board substrates.
Solvent-based inks offer superior adhesion to non-porous materials like films and foils, though they require proper ventilation systems during production.
UV-curable inks provide immediate curing when exposed to ultraviolet light, eliminating drying time and offering excellent chemical resistance and gloss properties.
Pigment concentration in flexographic inks typically ranges from 8-15%, balancing color intensity with proper flow characteristics essential for clean transfers.
Flexography Applications
Flexography has established itself as a versatile printing method across various industrial applications. The process offers exceptional flexibility for printing on diverse substrates while maintaining cost-effectiveness and high production speeds.
Packaging
Flexography dominates the packaging industry due to its ability to print on various materials. The technique efficiently handles food packaging, where its fast-drying inks prevent contamination while maintaining vibrant colors on pouches, bags, and wrappers.
We’ve observed significant improvements in flexo printing quality for retail packaging in recent years. Modern plate technologies now achieve image resolutions approaching those of offset printing.
Key packaging substrates include:
- Paperboard
- Films (polyethylene, polypropylene)
- Foils
- Laminates
Many major consumer brands prefer flexography for its balance of quality and cost-efficiency. The process adapts well to both short and long production runs, making it suitable for seasonal packaging changes and limited editions.
Labels and Tags

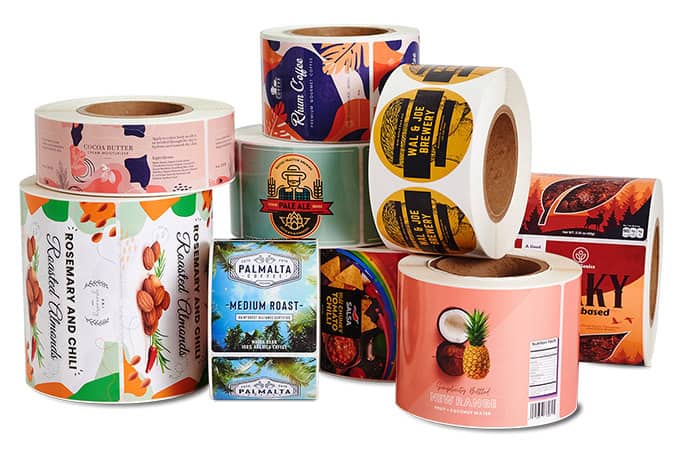

The label industry extensively uses flexography for its high-speed production capabilities. Pressure-sensitive labels, commonly found on food products and beverages, represent a major flexographic application.
We find flexo particularly suited for prime labels requiring durability and weather resistance. The process handles specialized substrates like thermal papers and synthetics that other printing methods struggle with.
Retail tags, price labels, and inventory tags benefit from flexo’s ability to incorporate variable data. Modern flexo presses integrate digital components for adding barcodes, QR codes, and serialized information.
Common label applications include:
- Food and beverage labels
- Health and beauty product labels
- Pharmaceutical packaging
- Wine and spirit labels
The technique excels at printing adhesive materials without compromising their functionality. Flexo inks adhere effectively to challenging surfaces while maintaining regulatory compliance for sensitive applications.
Corrugated Containers
Flexography has revolutionized corrugated box printing, replacing older methods that produced limited graphic quality. Modern flexo processes print directly onto corrugated board without crushing the flutes.
We see numerous shipping boxes featuring multi-color graphics printed via flexography. The technique allows cost-effective branding opportunities for e-commerce companies seeking to enhance unboxing experiences.
Direct-to-board flexo printing eliminates the need for separate label application. This integration significantly reduces production time and material costs.
Flexography advantages for corrugated printing:
- High-speed production capability
- Excellent ink coverage on rough surfaces
- Reduced make-ready time
- Compatibility with water-based inks
Recent advancements in plate technology have dramatically improved image definition on corrugated materials. High-definition flexo plates now reproduce fine details and smooth gradients that were previously unachievable on porous, uneven surfaces.
Flexible Packaging
Flexible packaging represents one of flexography’s fastest-growing applications. The process efficiently prints on films and laminates used for snack foods, pet products, and household goods.
We’ve witnessed significant technological improvements enabling flexo to achieve remarkable color accuracy on flexible substrates. Modern presses incorporate tension control systems that maintain registration on stretchy materials.
Food-safe inks specially formulated for flexography meet stringent regulatory requirements. These specialized formulations prevent migration through packaging while maintaining visual appeal.
Key flexible packaging applications include:
- Stand-up pouches
- Sachets and stick packs
- Shrink sleeves
- Flow wraps
Sustainability concerns have driven innovations in water-based flexo inks for flexible packaging. These environmentally friendly alternatives reduce VOC emissions while achieving comparable print quality to solvent-based systems.
Quality Control and Testing
Maintaining consistent print quality is critical in flexographic printing operations. Quality control processes ensure that flexo-printed products meet precise specifications and customer requirements throughout production runs.
Color Management
Color management is fundamental to flexographic printing success. We measure and control color using spectrophotometers and densitometers to ensure consistency across print runs. These instruments help operators quantify color values against established standards.
Delta E measurements provide numerical values indicating color differences between the printed sample and the reference standard. Acceptable Delta E values typically range between 2-5, depending on industry requirements.
Modern flexo operations implement closed-loop color management systems. These systems automatically adjust ink flow based on real-time measurements, reducing operator intervention and waste.
You should establish color standards during prepress and maintain them throughout production. We recommend documenting color targets using physical standards or digital references in the following format:
| Color Parameter | Target Value | Acceptable Tolerance |
|---|---|---|
| Density | 1.40 | ±0.05 |
| LAB Values | L:48 A:74 B:66 | ΔE ≤ 2.0 |
| Dot Gain | 18% | ±2% |
Print Defects Analysis
Identifying and resolving print defects quickly is essential for maintaining quality and reducing waste. Common flexographic defects include dot gain, banding, pinholing, and halos.
Dot gain occurs when ink spreads beyond intended areas on the substrate. We measure it using control strips and can adjust anilox selection or impression pressure to control it.
Streaking and banding typically result from worn doctor blades or improper anilox cleaning. Regular inspection of these components prevents these issues before they affect production.
Digital imaging systems now allow automated defect detection at production speeds. These systems can identify defects as small as 50 microns and alert operators to developing problems.
You should also establish a defect library with causes and solutions to help press operators troubleshoot. This documentation should include:
- Visual examples of each defect type
- Likely causes and contributing factors
- Recommended corrective actions
- Preventive maintenance procedures
Production Monitoring
Continuous production monitoring ensures consistent quality throughout long print runs. We implement statistical process control (SPC) methods to track key variables and identify trends before they become problematic.
Modern flexo presses incorporate inline inspection systems that measure registration, color, and print defects in real-time. These systems can detect variations from established standards and automatically adjust press parameters.
Register control is particularly critical in multi-color flexo printing. Automated register systems can maintain alignment within ±0.1mm tolerance even at high production speeds.
Job data collection provides valuable insights for future runs. We recommend recording the following parameters for each production job:
- Press speed variations and their effect on quality
- Ink viscosity measurements throughout the run
- Anilox roll specifications used
- Environmental conditions (temperature, humidity)
Web tension monitoring prevents many substrate-related defects. Consistent tension profiles help maintain register and reduce wrinkling or stretching issues common with film substrates.
Environmental Considerations
Flexographic printing has made significant strides in reducing its environmental impact over the past decade. Traditional solvent-based inks contained high levels of Volatile Organic Compounds (VOCs), which contributed to air pollution and potential health hazards for workers.
Today, the industry has shifted toward more sustainable alternatives. Water-based inks have become increasingly popular, reducing VOC emissions by up to 80% compared to solvent-based systems.
UV-curable and EB (electron beam) inks offer another eco-friendly option. These inks cure instantly through exposure to ultraviolet light or electron beams, eliminating the need for solvents and reducing energy consumption in the drying process.
Waste Reduction Initiatives:
- Implementation of computer-to-plate (CTP) technology
- Digital workflows reducing material waste
- Recyclable photopolymer plates replacing rubber plates
- Plate cleaning systems that minimize chemical use
The flexo industry has also improved press efficiency, resulting in less substrate waste during setup and production runs. Modern presses incorporate automation that achieves register more quickly, reducing startup waste by 30-50%.
Water consumption remains a challenge in flexography, particularly for water-based ink systems. However, closed-loop water recycling systems are becoming standard in modern facilities.
We continue to see improvements in biodegradable and compostable inks derived from renewable resources. These innovations align with the growing demand for sustainable packaging solutions in consumer markets.
Flexography vs. Other Printing Techniques
Flexography stands apart from other printing methods with its unique characteristics and applications. We find that comparing it to other popular techniques helps highlight its advantages and limitations in various contexts.
Flexography vs. Offset Printing
Flexo uses flexible relief plates while offset relies on flat plates that transfer ink to a rubber blanket. Offset typically delivers higher image quality for fine details, but flexo excels in production speed and versatility with substrates.
Flexography vs. Digital Printing
Unlike digital printing, flexo requires physical plates but offers faster production for long runs. Digital printing eliminates plate costs and enables variable data printing, while flexo provides more substrate options and typically lower per-unit costs for high volumes.
| Aspect | Flexography | Offset | Digital | Gravure |
|---|---|---|---|---|
| Plate Cost | Medium | Medium | None | High |
| Run Speed | Fast | Medium | Slow | Very Fast |
| Quality | Good | Excellent | Very Good | Excellent |
| Setup Time | Medium | Long | Short | Very Long |
Flexography vs. Gravure
Gravure uses engraved cylinders instead of raised plates. We find gravure delivers exceptional quality and consistency but requires higher initial investment than flexo.
Flexography’s key advantages include:
- Fast drying inks
- Ability to print on various substrates
- Cost-effective for medium to large print runs
- Lower setup costs than gravure
These comparisons help us understand why flexography remains the preferred choice for packaging, labels, and flexible materials where versatility and efficiency matter most.
Advancements in Flexography
Flexography has undergone remarkable technological evolution in recent years, transforming what was once considered a lower-quality printing method into a sophisticated process that rivals other premium printing technologies. These innovations have dramatically improved print quality while enhancing efficiency and environmental sustainability.
Digital Imaging Technology
Modern flexography has been revolutionized by direct-to-plate imaging systems that eliminate the need for film negatives. Computer-to-plate (CTP) technology allows for precise digital creation of flexographic plates with significantly improved detail reproduction and consistent quality.
High-definition (HD) flexo plates now achieve line screens of 150+ lpi with smoother gradients and sharper text than previously possible. These advances enable reproduction of intricate designs that were once exclusive to gravure or offset printing.
Digital flexo plates feature flat-top dots that resist compression during printing, maintaining consistent ink transfer throughout long press runs. This technology has substantially reduced the traditional “halo effect” and dot gain issues that previously plagued flexographic printing.
Microcell surface technology on modern plates creates controlled ink transfer by incorporating microscopic cells that hold precise amounts of ink. We’ve seen remarkable improvements in solid ink coverage and highlight reproduction through these innovations.
Sustainability Initiatives
Water-based and UV-curable flexo inks have largely replaced solvent-based formulations, dramatically reducing VOC emissions. These eco-friendly alternatives maintain excellent print quality while meeting stringent environmental regulations in various markets.
Plate processing systems now utilize less harmful chemicals, with some manufacturers developing solvent-free plate development processes. These systems significantly reduce environmental impact while maintaining plate durability and performance characteristics.
Energy-efficient UV LED curing technology has become widespread in flexographic presses. These systems consume up to 50% less energy than traditional mercury vapor lamps while providing instantaneous on/off capabilities that further reduce power consumption.
Key Sustainability Metrics:
- 70-80% reduction in VOC emissions with water-based systems
- 30-50% less energy consumption with LED curing
- Up to 60% waste reduction through digital workflow optimization
Automated Workflow Systems
Integrated color management systems now enable precise color matching and maintenance throughout production runs. These systems provide real-time feedback, allowing for immediate adjustments that minimize waste and ensure consistent quality.
Press setup times have been dramatically reduced through automated registration systems. Modern flexo presses can achieve register in minutes rather than hours, significantly increasing overall production efficiency and reducing material waste.
Inline inspection systems with high-resolution cameras detect defects in real-time, maintaining quality standards without manual intervention. These systems automatically flag and track quality issues, creating comprehensive production data for analysis.
Cloud-based workflow management connects prepress, production, and finishing operations into a seamless digital ecosystem. We’ve integrated these systems to provide instant status updates and facilitate rapid response to production challenges.
Future of Flexography
Flexography continues to evolve with technological advancements reshaping the industry landscape. We anticipate significant growth in this printing process over the next decade, driven by innovations in both equipment and materials.
Digital integration represents the most promising development in modern flexography. Hybrid systems combining traditional flexo with digital components allow for greater customization while maintaining production speeds.
Key technological trends include:
- Enhanced automation reducing setup times and waste
- Improved servo drives for better registration accuracy
- LED-UV curing systems offering energy efficiency and environmental benefits
- Water-based and solvent-free ink systems meeting sustainability demands
The flexo market is projected to reach $12.5 billion globally by 2028, with packaging applications leading this expansion. We observe particularly strong growth in flexible packaging and corrugated segments.
Sustainability remains a central focus for industry development. Manufacturers are investing in technologies that reduce environmental impact through decreased VOC emissions and minimized waste generation.
The rise of Industry 4.0 principles is transforming flexo workflows. Connected presses with real-time monitoring capabilities are enabling predictive maintenance and quality control improvements that were previously impossible.
Press manufacturers are focusing on designs that accommodate shorter runs without sacrificing efficiency. This addresses market demands for versioning and personalization in packaging.
New plate technologies featuring higher resolutions and improved ink transfer properties will continue enhancing print quality. We expect these developments to further narrow the quality gap between flexography and other premium printing methods.
Ready to Take Your Packaging Knowledge Further?
Flexography plays a big role in today’s packaging world. It’s one of many printing methods you’ll need to understand to make smart packaging choices.
Learn More with Witpax
Want to understand more about packaging and printing? The Witpax Packaging 101 Series breaks down complex topics into easy-to-follow guides. You’ll learn:
- How different printing methods work
- When to use each type of printing
- Ways to save money on your packaging
- Tips for choosing the right materials
Start Your Packaging Journey Today
Visit the Witpax Packaging 101 Series to build your packaging knowledge. Our guides use simple language and real examples to help you understand packaging better.
Need help with your next packaging project? Contact Witpax today. We’ll help you pick the right printing method for your needs.
