Pad printing Definition: It’s a versatile printing method that uses a silicone pad to transfer ink onto a variety of substrates.
Whether you’re printing on flat surfaces or more challenging irregular shapes, like medical devices or promotional items, pad printing can handle it all.
This method works by transferring an image from a cliché to a silicone pad, which then presses the design onto your product.
Step-by-Step Overview of the Pad Printing Process
Artwork Design on the Printing Plate
Pad printing starts when the pad presses down onto the printing plate, or cliché. The design is etched into this plate, creating recessed areas that hold the ink. Pad printing inks are applied to fill these recessed areas, ensuring the design is clearly defined.
The Silicone Pad Picks Up the Design
Once the ink is in place, the silicone pad moves into position to pick up the image. The pad adheres to the transfer pad and lifts the ink from the plate with precision. This is what makes pad printing perfect for intricate designs on difficult-to-print surfaces.
Application to the Object
Next, the silicone pad presses down onto the substrate, transferring the ink. Pad printing is ideal for products with curved or uneven surfaces, like medical devices, automotive parts, and promotional items.
Pad Printing Component

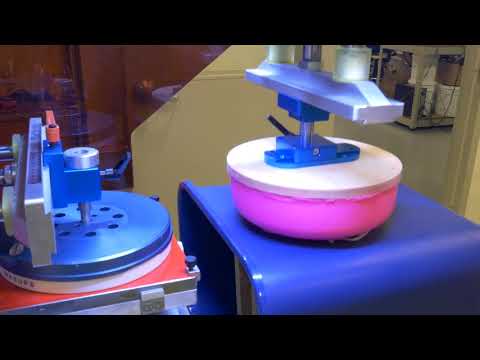

Pad Printer
At the heart of pad printing is the pad printer. This machine uses a silicone pad to pick up a small amount of ink from the plate and transfers it to the substrate.
The properties of the silicone pad make it highly adaptable, as it can mold to the shape of nearly any surface.
Pad Print Plates
These are typically made of metal or plastic and are etched with the design you want to print. The ink is applied to the plate, where it fills the recessed areas. Once the excess ink is wiped away, the printing cliché is ready to transfer the design onto the pad.
The Print Cycle
In the print cycle, ink is loaded into the pad print ink cup. The pad picks up the design, and the silicone pad transfers the ink onto the substrate.
Each cycle guarantees precision with every print.
Sealed ink cup systems combine the ink supply, flood bar, and doctor blade in one sealed unit.
Sealed ink cup
A ceramic ring with a polished edge creates a seal against the printing plate, ensuring the ink stays contained.
During the print cycle, excess ink is drawn back from the etched artwork area, taking all excess ink and exposing the etched image, which is filled with ink, into the ink reservoir by the doctor blade.
This system offers precise ink application, reduces waste, and minimizes contamination, making it ideal for print quality.
What Can You Print with Pad Printing?
Pad printing is versatile and ideal for printing on hard-to-reach or curved surfaces. It’s used across several industries:
- Promotional Products: Printing logos and designs on items like pens, keychains, and mugs.
- Medical Devices: Marking small, complex surfaces on syringes, diagnostic tools, and surgical instruments.
- Automotive Parts: Printing on buttons, dashboards, and other car components.
- Electronics: Printing logos, serial numbers, and symbols on buttons and switches.
- Consumer Goods: Printing on packaging, bottles, and containers.
- Industrial Products: Printing warnings, serial numbers, or instructions on industrial tools and machinery.
Pad printing works on plastic, metal, glass, rubber, and more, making it a go-to method for detailed prints on various products.
Advantages of Pad Printing
For Irregular Shapes
Pad printing is a flexible and cost-effective way to print on a variety of surfaces. Unlike other printing methods, pad printing excels at printing on both flat and curved surfaces.
It’s perfect for items like pens, medical devices, promotional goods, and automotive parts. No matter the shape, pad printing ensures precise, high-quality prints.
High Precision
One of the key benefits of pad printing is its ability to capture fine details. Whether it’s a logo on a small item or a complex design, pad printing delivers clarity.
Multi-color Capabilities
Pad printing can easily handle multi-color designs. By using multiple plates, inks, and pads, it’s possible to layer colors and achieve detailed, multi-color prints. This is ideal for creating logos or designs that require several shades to stand out.
Versitility
It also works with many materials—plastic, metal, glass, and even rubber. This versatility makes it an ideal choice for businesses across multiple industries.
Cost-Effective for Small Runs
The setup costs for pad printing are generally lower than those for other methods like screen printing, making it a great option for small batches or personalized products.
Durability
The ink used in pad printing is designed to be long-lasting, making it a great choice for products that need to endure wear and tear, such as automotive parts or industrial components.
With pad printing, you’re not just printing. You’re adding value with precision and flexibility.
Pad Printing vs. Screen Printing vs. Offset Printing
When it comes to printing methods, each one offers its own set of advantages. Let’s take a look at three popular techniques: pad printing, screen printing, and offset printing.
Screen Printing: Best for Flat Surfaces
Screen printing involves creating a stencil (or screen) and forcing ink through it onto the surface. It’s great for large flat areas and can handle vibrant colors with ease.
While screen printing is ideal for t-shirts, posters, or flat promotional items, it struggles with detailed or curved objects.
Compared to screen printing, you can use pad printing to ensure the design adapt well to complex surfaces.
Offset Printing: High-Volume Quality
Offset printing is often used for high-volume jobs, such as magazines or brochures. It works by transferring ink from a metal plate onto a rubber blanket and then onto the paper.
While it delivers sharp, high-quality prints, it’s not suited for curved or irregular surfaces like pad printing.
Offset printing also requires longer setup times, which can be less efficient for smaller runs.
Which Method Is Right for You?
It all depends on your needs. If you’re printing on flat surfaces with vibrant colors, screen printing might be your go-to.
For high-quality prints in large quantities, offset printing could be ideal.
But if you’re dealing with complex, 3D objects or need to print on unusual surfaces, pad printing will likely give you the best results.
Innovations in Pad Printing Technology
Recent Innovations in Pad Printing Machines
With recent advancements in pad printing technology, machines are faster and more accurate than ever.
New pad printing equipment allows for quicker setups and more consistent results.
If you’re looking to improve production efficiency, newer models can handle large orders without compromising on quality.
Advancements in Ink Technology for Pad Printing
Pad printing inks have also improved. New formulations enhance adhesion, ensuring the ink stays vibrant for longer periods, even on products exposed to wear and tear.
These inks are designed to work on a wider range of materials, making pad printing an even more versatile method for industries like medical, automotive, and promotional products.
Types of Pad Printing Machines
From manual to fully automatic, pad printing machines come in various forms.
Whether you need small batch runs or large-volume production, there’s a pad printing machine for the job.
Each type has its own features, from simple pad presses to high-tech machines that ensure smooth and consistent prints.
Wrapping it up
Pad printing exemplifies versatility in modern printing technology.
Its ability to adapt to various surfaces while maintaining precision makes it an invaluable solution across industries – from medical devices requiring exact specifications to promotional items needing eye-catching designs.
The result? Consistent, professional quality that meets diverse business needs.
